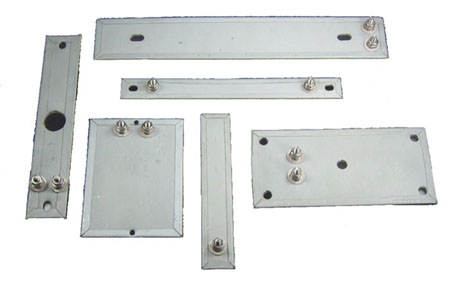

Mica Strip Heaters
|
|
Specifications Thickness: Normal 1/8" |
Options Stainless steel braids for flexibility Button terminals Stainless steel conduit for maximum lead protection Right angle exit available on any construction Dual voltage and 3 phase construction Spring guard upon request Built in thermocouple Euro plug Terminal box Ground wire construction Custom mounting holes Ceramic terminal covers |
Watt Density Formula
Wattage/(Heater Length-Cold) x Width
| Widths | 3/4 inch to 4 feet |
| Lengths | 2-/12 inches to 8 feet |
| Volts | 480 Volts Max |
| Watts | 40 watt per square inch max |
| Sheath Material | High temperature steel is standard, stainless steel is optional |
| Terminations | Post terminals, High temperature lead wire, Stainless steel braid, Stainless steel flexible conduit, Eruoplugs |
| Options | Three phase construction, Dual voltage construction, Terminal boxes, Ground wires, Holes, Slots, Cutouts |

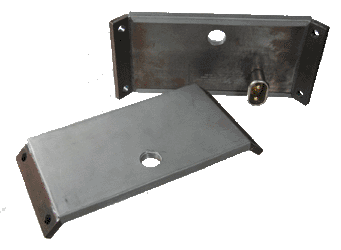

Boxes and Plates
| Marathon strip heaters can be built in special box configurations. |
|
| Strip heaters can be built integrally with thicker plates for optimal heat transfer |
|
