Marathon offers a wide variety of construction options for special applications.

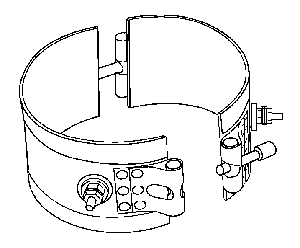

Two Piece Construction

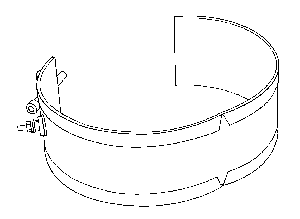

Expandable


  • Two piece construction is ideal for easy installation and removal.
  • Please specify total wattage when ordering.
  • Min. ID is 3"

  • Expandable construction allows you to open the heater up to the diameter of the barrel for easy installation.
  • Min ID 3"
  • Heaters should only be opened all of the way one time.

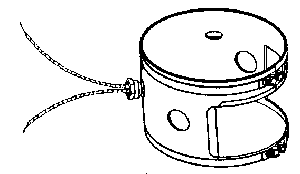

Holes and Cut Outs

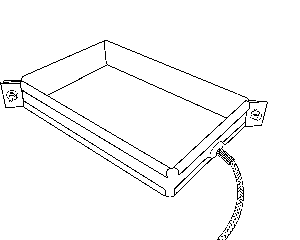

Box Heaters


  • Band Heaters can be manufactured with custom holes or slots for thermocouples or special mounting requirements.
  • Please supply a drawing or sketch for exact hole locations.
  • Specify location in terms of degrees and size of hole.
  • Minimum of 1/2" is required from the hole to the edge of the heater.

  • Box or rectangular heaters are efficient for heating dies on plastic extruders or the barrels of twin extruders.
  • They can be manufactured in one or two piece construction.
  • Please supply detailed drawing or sample part when ordering or for quoting.
