The TM Series cooling tower is ready to meet the needs of today’s industry. This cooling tower supplies inexpensive cooling water for your hydraulics, condensers, temperature controllers, and other machinery.

DESIGN CONDITIONS
• 85°F, based on 95°F EWT at a 78°F wet bulb.

SHELL CONSTRUCTION
• G210 hot-dip galvanized steel
• Zinc chromatized aluminum paint applied to exterior
• Double-brake flanges for maximum strength
• Die punched panels for accurate mating
• Screens and belts are easily removed for access to internal parts
• Heavy duty lifting hooks
• Leakproof access doors

MOTOR
• Open drip proof
• 1.15 service factor
• Suitable for outdoor service
• Mounted on an adjustable base
• Direct drive assembly on 6 - 20 ton models
• V belt drive assembly on 26 - 200 ton models
• Design to easily adjust belt tension

WET DECK
• Efficient PVC surface
• Impervious to rot and decay
• Maximum air to water contact
• Low air pressure drop

FAN
• Fixed pitched
• Heavy duty construction
• Matched to specific tower for maximum efficiency
• Direct drive mounting on 6 - 20 ton models
• V belt drives use solid steel shaft and grease packed self-aligning bearings.
• Pillow-block type bearing housing
• Easy relubrication

WATER DISTRIBUTION
• Open gravity feed hot water basin
• Built in velocity breaker
• Large diameter metering orifices

WATER MAKE-UP SYSTEM
• Brass float valve
• Easily adjustable float
• Float system can be installed on remote pump tank

WARRANTY & SERVICE
• 1 year on fan and motor
• 5 year on shell

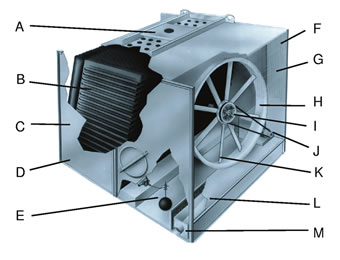

A: Water Distribution
B: Wet Deck
C: Access Door
D: Galvanized Steel Panels
E: Water Make Up
F: Protective Screen
G: Air Entry H: Air Inlet Entry
I: Motor
J: Fan Shaft & Bearings
K: Axial Flow Fans
L: Strainer
M: Drain Connection
