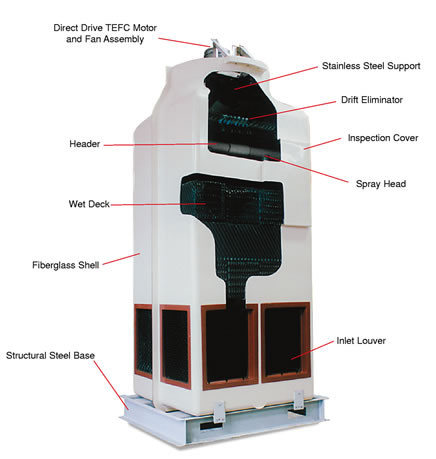

INLET LOUVERS:
• PVC construction
• Easily removed for cleaning
• Vertical orientation to eliminate ‘splash out’
• Directs air flow at proper angle for even distribution
• Helps prevent air-born debris from entering cell

DISTRIBUTION HEADER:
• Non-ferrous PVC ‘cross’
   construction
• Stationary
• Computer designed spray
   pattern
• Large orifice spray heads
• PVC spray heads
• Drift eliminator prevents
   over spray and water loss

WET DECK:
• Stacked honeycomb
   pattern maximizes
   water and air flow for
   greater cooling
   efficiency
• PVC construction

INSPECTION COVERS:
• Easily removed
• Seamless gasket sealing
• Allows for inspection of cell
   interior and replacement
   of wet deck

WARRANTIES:
• 10 year shell warranty
• 5 year motor/fan warranty

OPTIONS

SIDE OUTLET:
• PVC flange
• Factory installed

BASIN FLOAT VALVE:
• Mechanical float and valve
• 1/2” supply connection
• Factory or field installed

TOWER DESIGN:
• Single or multi cell designs
• Total non-ferrous construction materials
• Single inlet and drain connections on models up to 270 tons
• Induced draft air movement
• Structural galvanized steel base on 45 to 135 ton models
• Structural painted steel base on 170 to 540 ton models

SHELL CONSTRUCTION:
• High strength fiberglass molding
• 1/2” of structural thickness in reinforced areas
• UV stabilized coating
• Acrylic adhesive bonding between shell halves
• Polyurethane sealant

FAN:
• Air foil shaped blades for increased air flow
• Blades are made of a glass fiber reinforced polymer
• Direct drive
• Factory set for maximum air movement

MOTOR:
• TEFC construction
• Mounted on a stainless steel frame
• Supported on reinforced fiberglass shell area
• Mounted to shell with stainless steel fasteners

TOWER STAND:
• 10’ corner post design with
   cross bracing
• Ladder and railing
   attachments
